₹23,742.00 ₹21,199.00
(INCL.OF All TAXES)

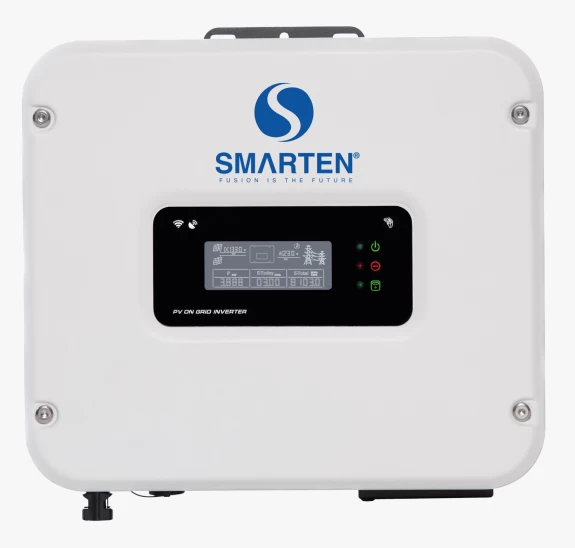

| Model | STAR S3KW |
|---|---|
| Max DC Power (W) | 4500W |
| Max DC Voltage (Vdc) | 550 |
| Min System Start/Shut Down Voltage (Vdc) | 75/100 |
| MPPT Voltage Range (Vdc) | 100-500 |
| Max Input Current (A) | 18A |
| Number of MPP Trackers | 1 |
| Nominal Output Power (W) | 3000 |
| Maximum Output Power (W) | 3300 |
| Nominal Output Voltage/Range (V) | 208, 220, 230, 240 / 180-270 |
| AC Grid Frequency/Range (Hz) | 50Hz, 60Hz (auto-selection) / 44Hz-55Hz; 54Hz-65Hz |
| Maximum Conversion Efficiency | 97.5% |
| European Efficiency | 97.20% |
| MPPT Efficiency | 99.9% |
| Protection Features | DC Reverse-Polarity, Anti-Islanding, Overvoltage, Short Circuit, Leakage Current, Grid/Ground Fault Monitoring, DC/AC SPD (thermally protected) |
| Dimension (L/W/H mm) | 300/294/104 |
| Weight (kg) | 5Kg |
| Embedded DC Switch | Optional |
| Night Power Consumption (W) | <0.2 |
| Isolation Type | Transformerless |
| Protection Degree | IP65 according to IEC60529 |
| Operation Temperature (°C) | 25 to +60 |
| Cooling Concept | Smart Cooling |
| Operating Altitude (m) | <2000m without power derating |
| Acoustic Noise Level (dB) | 25 |
| Brand | Smarten Power Systems Ltd. |
| Product Dimensions | 0x0x0 cm |
| Weight | 0 g |
Order or enquire via Whatsapp
